Ugo Basile Hot / Cold Plate

Product Code: 163

This new version of the classic instrument now works with ramping temperature (increasing or decreasing) and in a wide range of temperatures (from 2°C to 66°C). With these new features scientists can perform allodynia experiments, study receptors for cold sensitivity and run “dynamic” experiments, by changing the plate at a desired rate.

Introducing Ugo Basile’s Next Generation of Hot/Cold Plates: Same Relaibility, Innovative Technology!

Two Working Modes: fixed temperature or ramping

Touch Screen Display

Operating Temperature from -5°C to 65°C in steps of 0.1°C

Memory Stick Provided

New Software

The animal is placed on the surface as a foot pedal is pressed to start a clock. The observer presses the foot pedal again when the animal makes a stereotyped paw lick response to the pain. Reaction time is measured in steps of 1/10 sec. This latency is strongly affected by analgesic drugs.

The 55075 comes with a restraining cylinder for rats and mice, a manual, and a power cord.

Ugo Basile Analgesia Hot Plate

The Conventional Hot Plate can carry out a rapid precise screening of narcotic type analgesic drugs (morphine, codeine, etc.) according to the well known method devised by N. B. Eddy and D. Leinnack which now is called the Hot Plate test.

Ugo Basile, Innovative Cold Plate

Recent research has provided information demonstrating that receptors respond differently to “cold” pain compared to “hot” pain. These novel receptors release chemicals in response to cold stimulation only. These neurons are present in both the central and peripheral nervous system. The new Hot/Cold plate provides a greater range of temperatures in order to determine pain responses to either hot or cold. Cold plate testing could be useful in studying unique and novel responses by receptors in both mice and rats.

New Software Included for easy experiment configuration!

The Combination Hot/Cold Plate is commonly used to assess response to thermal stimuli in mice or rats including:

• Hot or cold pain threshold

• Thermal allodynia

• Temperature hyperalgesia

The Ugo Basile Hot/Cold plate accommodates a wide range of temperature settings (2-66°C) and is capable of operating in two modes, fixed or ramping temperature. A foot pedal is included for hands-free operation. An optional auxiliary Hot/Cold Plate is also available for testing multiple animals simultaneously.

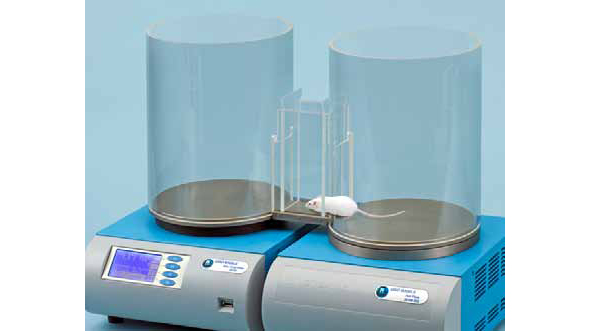

Thermal Preference Test

A two-choice thermal preference test is also available for assessment of temperature preference between genders, age or species.
