SmartProbe

Product Code: 91

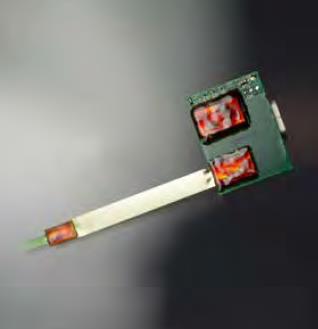

The SmartProbe™ combines on-package electronics with NeuroNexus neural electrode arrays, enabling high channel count recording in an ultra-compact form factor.
The SmartProbe™ utilizes state-of-the-art on-board electronics to digitize neural signals at the implant site, minimizing both the overall implant size as well as noise from connectors and movement.
Miniaturization is achieved through the reduction of the output connector lead count, allowing a large number of channels (up to 256) to be multiplexed through a standard mini HDMI cable. Connection force is reduced, so daily connections take place more reliably.
ARRAY DESIGNS
The SmartProbe™ can be configured from any Standard NeuroNexus electrode array.
DATA ACQUISITION AND CONTROL SYSTEMS
The SmartProbe™ requires a control and acquisition system such as the SmartBox™, or any Intancompatible system. No headstage is required.
Alternatively, conventional probes can be connected to the SmartBox™ with SmartLink headstages.

HEADSTAGE ADAPTORS
LEFT: SmartLink16, RIGHT: SmartLink32 headstage

Specifications
Channel Count 16, 32, 64, 128, 256
A/D Converter 16-bit ADC
Sampling Rate Up to 30 kSamples/s
Signal Bandwidth 0.1-100 Hz
250 Hz -7.5 kHz
Electrode Array Length 2, 3, 4, 5, 6, 10, 15 mm (varies by design)
Electrode Array Thickness 15 µm or 50 µm (varies by design)
Electrode Site Material Iridium (standard), Platinum (custom), Gold (custom)
