Microelectrode Array (MEA)

Product Code: 73

The Multichannel Microelectrode Array (MEA) is designed for providing endless alternatives for recording/stimulation studies.

Features

Up to 128 penetrating microelecrodes per array for acute and long-term recording/stimulation.

Custom microelectrode length between 1-40 mm, including different lengths within an array.

Custom spacing between electrodes is in the range of 0.1-1mm

Custom microelectrode impedance for individual electrodes ranges between 10kΩ-5MΩ.

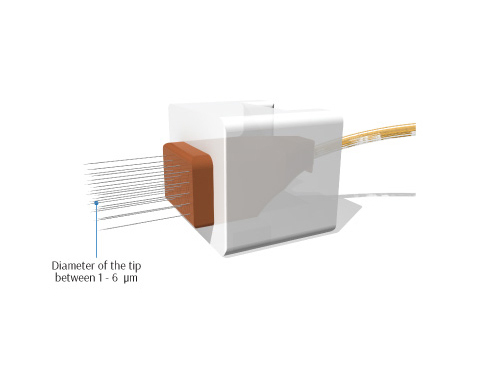

Custom electrode tip diameter between 1 – 6 μm.

Custom reference and ground electrodes according to the researcher’s requirements.

Optionally integrated fiber optic and/or drug delivery cannula.

Parylene-C electrode insulation.

Pure Iridium is suggested for chronic stimulation studies.

Optional polyimide tubing for additional stiffness.

ELECTRODE METAL TYPE

PLATINUM | IRIDIUM

PURE IRIDIUM

TUNGSTEN

APPLICATIONS

Single Unit LFP ECoG

Spinal Cord

Peripheral Nerve bundles

Isolated preparations

SUBJECTS

rat/mice feline birds Primates
