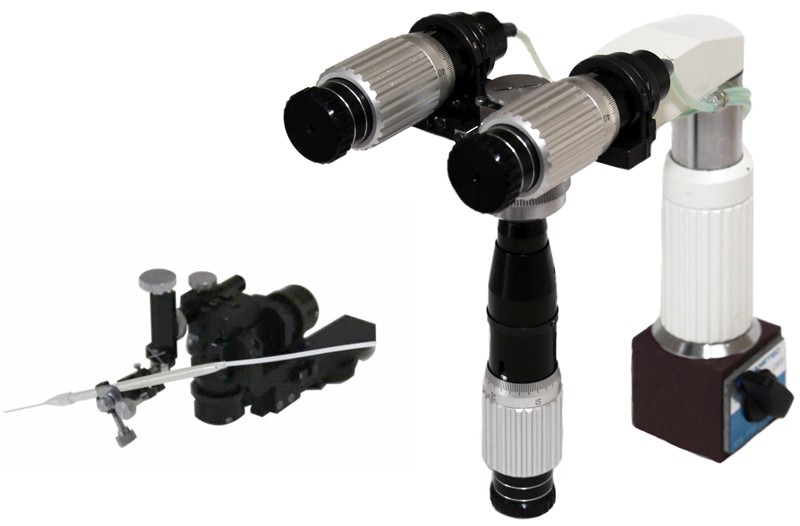

Hydraulic Joystick Driven Micromanipulators

Product Code: 209

Hydraulic Joystick Driven Micromanipulators
Description
This remote control system provides coarse and fine movement on the same axis (Coarse 15mm, Fine 5mm). Furthermore, the hydraulic fluid absorbs hand vibration and the joystick allows for 3D movements

Inject quick and easy with the Manual Manipulator, 3D 5mm each, w/Joystick
Coarse/Fine on the same axis (Coarse 15mm, Fine 5mm)
Absorbs vibration from hands by using hydraulic fluid
Joystick allows for 3D movements
Compact design
Uses remote control system
Compatible with both right and Left hand users

Specifications
Incl. U-1 Universal Joint
Travel Coarse X/Y/Z 15mm ea. Fine X/Y/Z 5mm ea. 500um/1 revolution handle Scale resolution 4um Joystick on X/Y plane, 2mm/max.
Size Control section W180 x D180 x H130mm Driving section W55 x D100 x 60mm
Weight Control Section 1,220g, Driving section 230g
