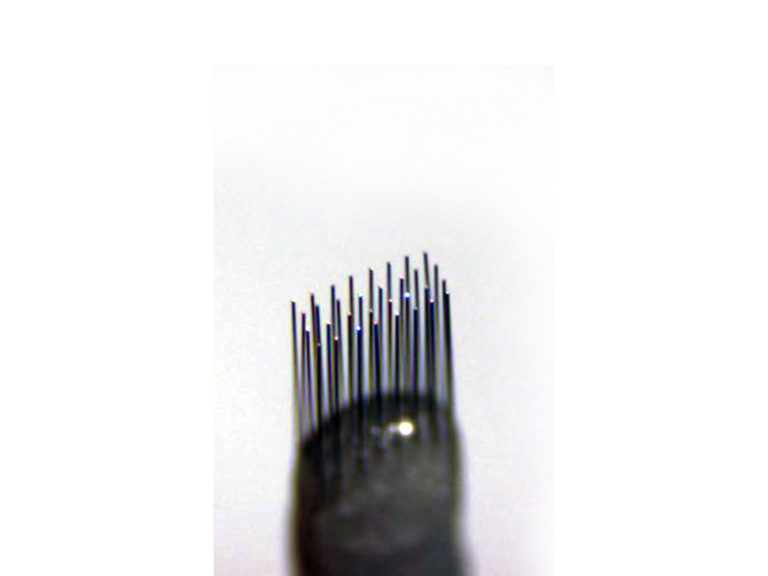

GloBio Microwire Array

Product Code: 83

The micro electrode array provided by Global Biotech is available for acute and chronic electrophysiological recording experiments, providing a highly flexible and cost-effective solution for electrophysiological studies of rodents and nonhuman primates.
Features:
Up to 32 channels of electrode arrays for short and long term nerve signal recordings
The electrode length can be customized from 5mm to 30mm
Electrode spacing can be customized from 250μm to 1000μm
Electrode diameter 25μm and 50μm optional
The electrode impedance is between 200 and 800 kilohms
Electrode material can choose stainless steel, tungsten wire or nickel-cadmium alloy, the external Teflon or Parry Spirit material insulation
You can customize the ground or reference electrode settings
Fiber can be integrated for optical genetic experiments

Model: 2*4 2*8 4*4 4*8
Spacing: 250—350um
Effective length: 5-20mm
Interface Type: Samtec connector,Omnetics connector(2*2/2*4/4*4) ; Omnetics connector(4*8)
Electrode wire material: Platinum iridium alloy;Ni-Cr alloy;Tungsten
Wire diameter: 13um – 50um
Electrode impedance: 500K – 1.5M
