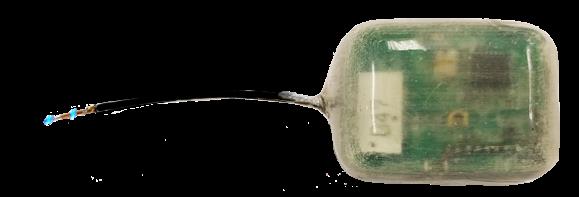

TBSI Wirelessly Programmable Neural Stimulation System

Product Code: 43

FEATURES
• Two External TTL Stimulation triggers available on USB Dongle
• 90-day package life
• Available with 2 channels, independent timing and brightness control.
• Blue LED 465.6nm wavelength.
• 37mW typical output intensity at 20mA.
• 31x25x12mm Headstage with 7.8 grams.
• Communicates data with Opto StimWare® via USB dongle.
• 8 pin Omnetics nano conector to interfa face to multitude of LEDs.
• Timing accuracy as short as 50µs.
• 12 bit brightness resolution.
• Inductive powering accessory for 24/7 testing

PARAMETER MIN TYP MAX UNITS NOTES
Power Supply
Battery life
OptoStimHeadstage Mechanical Specs
Length 31 mm Edge to Edge
Width 25 mm Edge to Edge
Height 12 mm Edge to Edge
Weight 7.8 grams With connector and dipped package
Temperature tolerance 1 degree C Change of package surface temperature
