Thomas Recording Electrochemical Multi-core Microelectrodes

Product Code: 82

Thomas RECORDING electrochemical disc micro-electrodes were originally designed for SECM (Scanning ElectroChemical Microscopy), but they are also suitable as working electrodes for other electrochemical applications like voltammetry or amperometry.

As reported by Ufheil et al. (see downloads & publications [1]) a new tip tool for the SECM is described that should allow a wide range of kinetic measurements. It was shown by the authors that the shielding factor as well as the collection efficiency can be changed over a wide range by approaching suitable surfaces and varying the distance to the tip. Furthermore, the heptode opens a wide range of applications because it includes seven sensing elements that can be used separately. This allows local in situ modification and analysis with the SECM when working with modified heptodes.

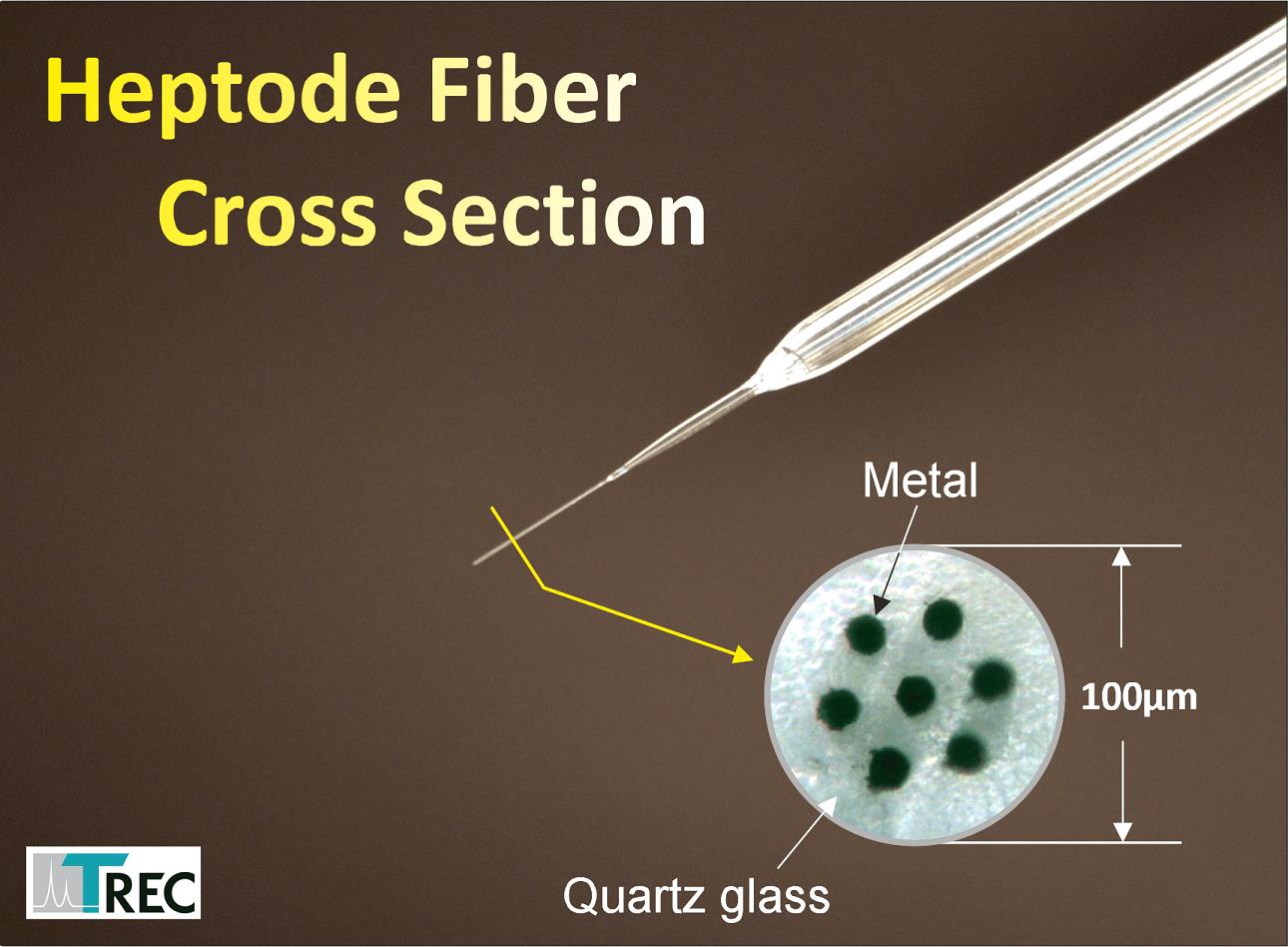

The electrodes are based on unique multicore metal fiber of platinum/tungsten alloy, insulated with quartz glass.
Key features:

Unique manufacturing technique
highly centered metal core
4- and 7channel electrode available
very good signal to noise ratio
Quartz glass insulation
different tip shapes available with tip diameters in µm

Core conductor material: platinum (95%), tungsten (5%)
Insulation material: quartz glass
Number of available channels: 4-channel or 7-channel electochemical electrode.
Tip shape: (B) pulled & ground, disc type (only available for 4 channel electrochemical electrode)
(C) only ground, disc type (most common)
Connectors: gold plated male pin, 0.8mm
