Stoelting Manual Stereotaxic Injector

Product Code: 202

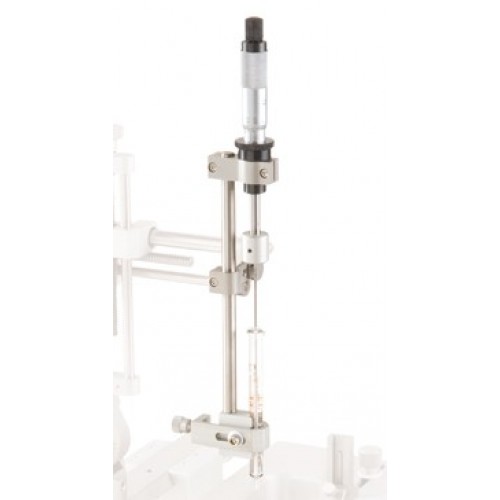

Stoelting’s manual Stereotaxic Injector provides an economical means of injecting/withdrawing a calibrated volume with simple, precise manual control. Mounted directly on a stereotaxic frame, it allows precise injection directly through the needle into the tissue. This avoids the compliance issues that arise when injections are forced through plastic tubing. Volumes as small as 200 picoliters may be infused or withdrawn. The injector has a universal adaptor for all Hamilton syringes, ranging from 0.5 to 250µl sizes and enables a wide range of volumes to be delivered. Includes Holder for mounting to Stereotaxic Instrument.

Manual Injector Features:

• Infusion/withdrawal of picoliter volumes

• Mounts directly to stereotaxic frame

The precise withdrawal mechanism makes it simple to pick up even one small sample! This results in minimal waste, preventing degradation of precious samples.

The manual Stereotaxic Injector is graduated in 0.01mm increments. One complete revolution advances the plunger of the syringe 0.5mm.

Plumber adaptor allows both infusion and withdrawal operation. Precise withdrawal mechanism makes it simple to pick up even one small (amount) dose! This results in minimal waste of precious samples and prevents degradation of samples due to long-term storage of multiple doses in the syringe at room temperature. With precise manual control, infusions can be as slow as required; slow infusions are more likely to stay in place, and not forced back along the needle track, since the neural tissue has more time to adjust to the incoming fluid.

The Large Probe Holder 51633 (included) allows for mounting injector directly to the manipulator arm of a stereotaxic instrument for precise targeting of injections.

Micrometer graduated in 0.01mm increments

Easy thumb-and finger-control knob for precise injections

Locking clamp to hold position

Luer Lock for easy connection of most syringes

Secure and gentle hold of glass microsyringes

Related Products

ITEM DESCRIPTION

51639 Manual Stereotaxic Injector
