With our novel and reliable products the photoactivation/photoinhibition of cells through an integrated optical fiber, multichannel electrophysiological recording and/or stimulation of an extended brain area can be achieved in parallel.

Features

Multiple optical fiber diameter available.

Up to 32 penetrating electrodes surrounding one or more optical fiber.

Custom length of each electrode and optical fibers between 1 to 40 mm, including different lengths within the array.

Custom spacing between electrodes is in the range of 0.1-1mm

Custom microelectrode impedance for individual electrodes ranges between 10kΩ-5MΩ.

Custom electrode tip diameter between 1 – 6 µm.

Custom reference and ground electrodes according to the researcher’s requirements.

Optionally integrated fiber optic and/or drug delivery cannula.

Parylene-C electrode insulation.

Pure Iridium is suggested for chronic stimulation studies.

Optional polyimide tubing for additional stiffness.

APPLICATIONS

Single Unit LFP ECoG

Spinal Cord

Isolated preparations

SUBJECTS

rat/mice feline birds Primates

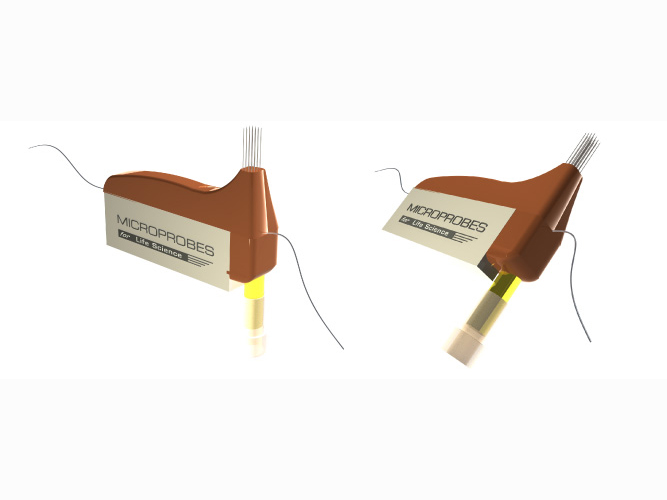

The fiber optic is positioned in the middle of the array, its vertical position is custom and its receptacle is compatible with most of the light sources.

The small-scale but high-density arrays provide multichannel Single-Unit (SUA), Multi-Unit (MUA) and Field Potential (FP) data leading to consistent and high-quality results.
