NAN Drive NAN-CMS

Product Code: 19

NAN instruments presents a revolutionary positioning device for Microelectrodes and Tetrods, used in Extracellular recording.
NAN-CMS is a modular Extracellular micromanipulator.

Features
Each Electrode is independently manipulated in the XY planes, within a user defined working range.
Each Electrode is independently manipulated in the Z direction within a user defined working depth (up to 100 mm) and variable speed range from 0.001mm /sec to 0.5 mm/sec and a high resolution of 1 micrometer

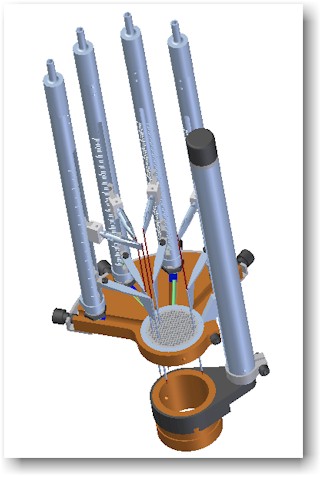

It can accommodate various shapes of layouts for example the one in the pictures includes 8 electrodes in one guiding tube 4 in another and extra number of single-tube electrodes. Modular number of Terminals in resolution of 1.
Light weight – e.g. 9 channels system weights 110.9gr including: Well (13.8gr), Grid (5.5gr), Base (20.7gr) and 9 of 7.8gr each.
Special cover that can be used to seal the system hermetically for leaving it on the head over night.
User friendly computer controlled system.
